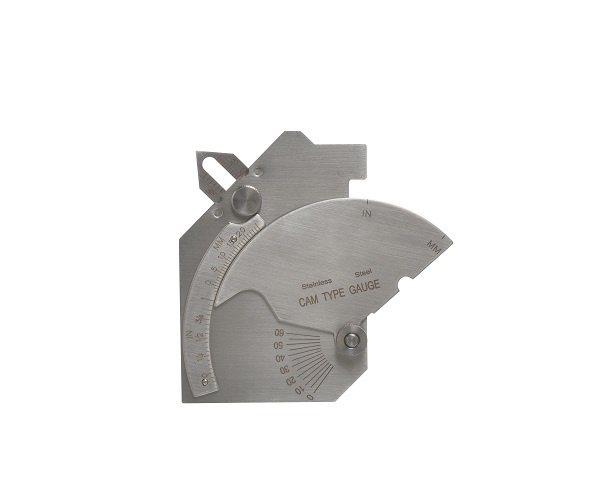

BRIDGE CAM WELDING GAUGE

FEATURES:
Measurements are possible either in inches or millimetres
■ Angle of preparation, 0° to 60°
■ Excess weld metal (capping size)
■ Depth of undercut
■ Depth of pitting
■ Fillet weld throat size
■ Fillet weld length
■ Misalignment (high-low)

General linear measurements up to 60 mm or 2 inches
